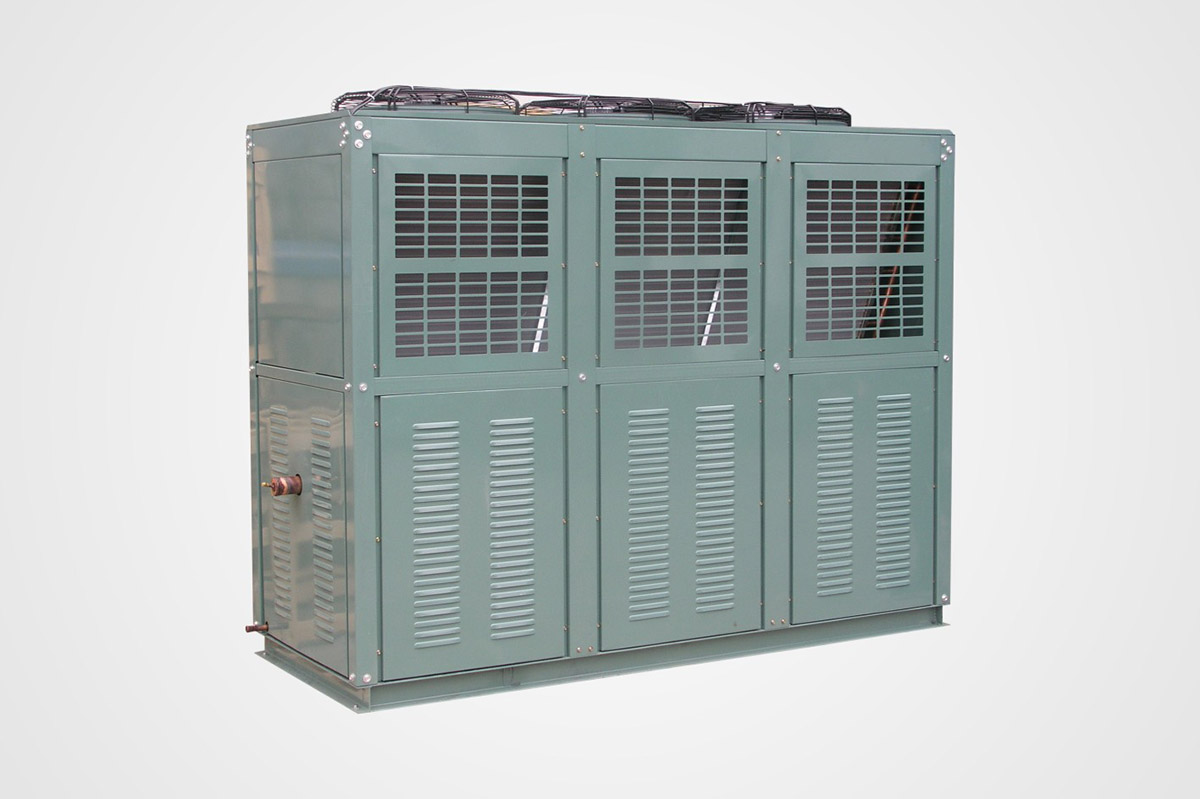

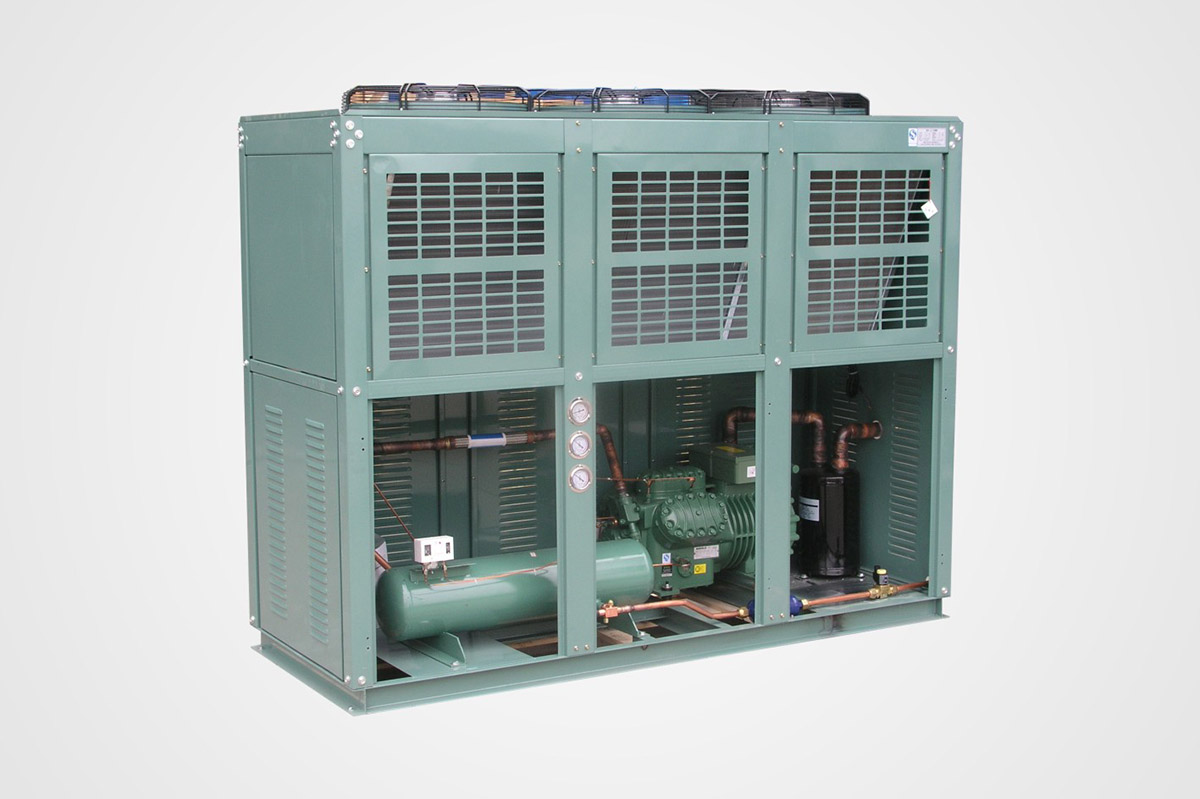

V型箱式壓縮冷凝機組

BOX V TYPE CONDENSING UNITS

產品特點(Priduct features)
◆ 外殼采用整體箱式結構設計,鋼板表面加上高防腐噴涂,外形美觀;
◆ 冷凝面積從80~1600m2范圍,可廣泛應用于空調、冷凍、冷藏、衛生、醫藥、農業、化工等行業;適合各類半封閉及螺桿壓縮機的安裝;
◆ 其主要特點:冷凝器V,W形布置,迎風面大、換熱效果好,可廣泛配套于冷凝機組中使用;
◆ 所用風機為7葉6極轉子,運行平穩,噪音小;
The shell is designed as a whole box,the surface is with preservation treatment,beautiful apperrance.
Heat exchange area available fron 80 to 1600m2,widely applied to air conditioning freezer,cold storage, hygiene,medical, agricultural and chemical. Suitable for fitting with semi-hermetic and screw ompressor.
Main feature:V and W type condenser,with big surface and excellent heat exchange effect, can be widely used to condensing units.
All the fans are with 7 blade, 6 stage axial fans, stable operation and noiseless.
